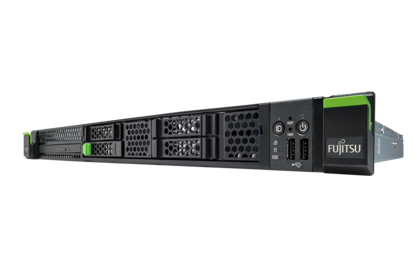

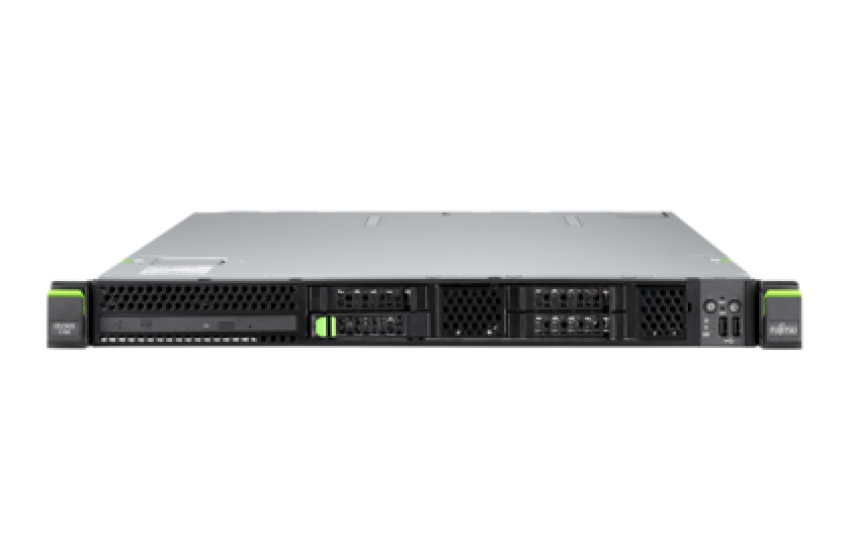

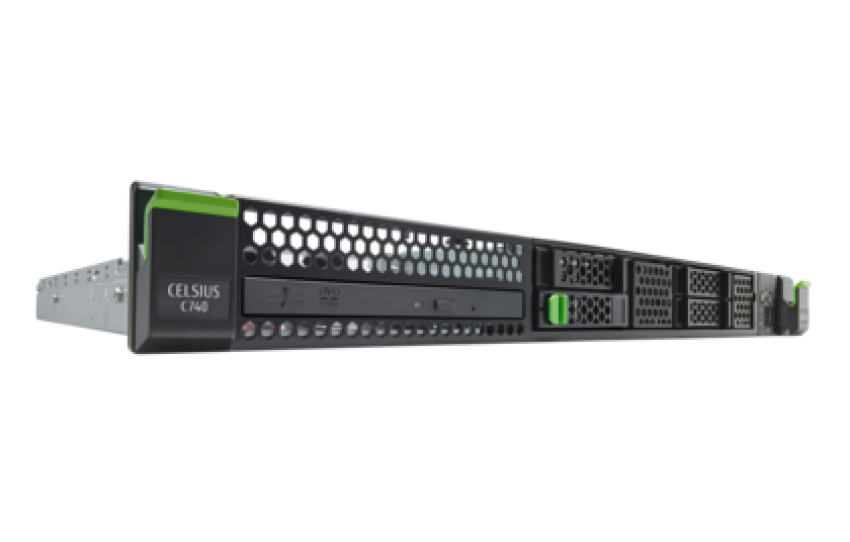

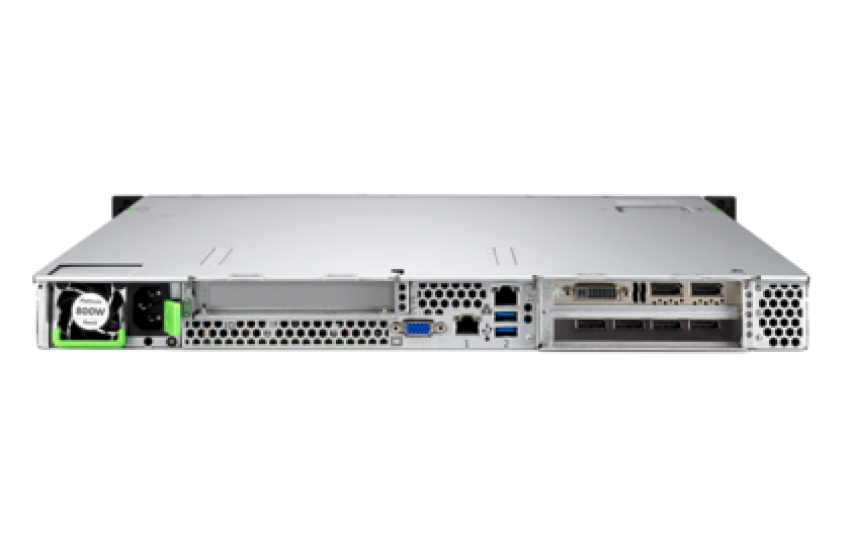

FUJITSU Workstation CELSIUS C740
Driven by German precision engineering and innovation, Fujitsu’s engineers maximized rack density in the datacenter while at the same time offering true workstation performance in only 1U. This allows customers in the automotive, aeronautic, broadcasting,energy as well as healthcare industry to benefit from faster time-to-market and reduced innovation cycles from the safety of the datacenter.
- Workstation CELSIUS C740 VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro
- Windows 7 Professional (available through downgrade rights from Windows 10 Pro)
- Additional software (preinstalled) Nero Essentials S (burning software)
- Fujitsu Recovery (hard disk based recovery)
- Norton Internet Security (incl. Firewall) 60 days version
- Microsoft Office (buy license to activate the pre-installed Microsoft Office)
- Mainboard D3288-A2 (proprietary )
- Chipset Intel® C612
- Processor Type, Second Level cache, Processor frequency Intel® Xeon® processor E5-2699v4, 55 MB, 2.20 GHz
- Intel® Xeon® processor E5-2697v4, 45 MB, 2.30 GHz
- Intel® Xeon® processor E5-2690v4, 35 MB, 2.60 GHz
- Intel® Xeon® processor E5-2680v4, 35 MB, 2.40 GHz
- Intel® Xeon® processor E5-2650v4, 30 MB, 2.20 GHz
- Intel® Xeon® processor E5-2640v4, 25 MB, 2.40 GHz
- Intel® Xeon® processor E5-2630v4, 25 MB, 2.20 GHz
- Intel® Xeon® processor E5-2643v4, 20 MB, 3.40 GHz
- Intel® Xeon® processor E5-1680v4, 20 MB, 3.40 GHz
- Intel® Xeon® processor E5-1660v4, 20 MB, 3.20 GHz
- Intel® Xeon® processor E5-2620v4, 20 MB, 2.10 GHz
- Intel® Xeon® processor E5-2609v4, 20 MB, 1.70 GHz
- Intel® Xeon® processor E5-1650v4, 15 MB, 3.60 GHz
- Intel® Xeon® processor E5-2637v4, 15 MB, 3.50 GHz
- Intel® Xeon® processor E5-2603v4, 15 MB, 1.70 GHz
- Intel® Xeon® processor E5-1630v4, 10 MB, 3.70 GHz
- Intel® Xeon® processor E5-1620v4, 10 MB, 3.50 GHz
- Intel® Xeon® processor E5-1607v4, 10 MB, 3.10 GHz
- Intel® Xeon® processor E5-1603v4, 10 MB, 2.80 GHz
- Intel® Xeon® processor E5-2623v4, 10 MB, 2.60 GHz
- Intel® Xeon® processor E5-1660v3, 20 MB, 3.00 GHz
- Intel® Xeon® processor E5-1650v3, 15 MB, 3.50 GHz
- Intel® Xeon® processor E5-1630v3, 10 MB, 3.70 GHz
- Intel® Xeon® processor E5-2697Av4, 40 MB, 2.60 GHz
- Processor quantity maximum 1
- Supported capacity RAM (max.) 512 GB, 8 Memory slot(s) DIMM (DDR4) ECC, Quad channel support. For quad channel performance, a minimum of 4 memory modules have to be ordered. Capacity per channel has to be the same.
- Serial ATA 6 x Serial ATA total
- Controller functions Serial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
- SATA RAID support 0, 1, 10, 5
- Drives (optional) DVD Super Multi ultra slim (tray), SATA
- Hard disk drive SSD SATA III, 1024 GB, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 480 GB High Endurance, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch, SED
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 240 GB High Endurance, 2.5-inch
- SSD SATA III, 128 GB, 2.5-inch
- PCIe-SSD, 1024 GB M.2 NVMe Highend module
- PCIe-SSD, 512 GB M.2 NVMe Highend module
- PCIe-SSD, 256 GB M.2 NVMe Highend module
- PCIe-SSD, 2x 1024 GB M.2 NVMe Highend card
- PCIe-SSD, 2x 512 GB M.2 NVMe Highend card
- PCIe-SSD, 2x 256 GB M.2 NVMe Highend card
- PCIe-SSD, 1x1024 GB M.2 NVMe Highend card
- PCIe-SSD, 1x 1024 GB M.2 NVMe card
- PCIe-SSD, 1x 512 GB M.2 NVMe Highend card
- PCIe-SSD, 1x 512 GB M.2 NVMe card
- PCIe-SSD, 1x 256 GB M.2 NVMe Highend card
- PCIe-SSD, 1x 256 GB M.2 NVMe card
- HDD SATA III, 10,000 rpm, 500 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1000 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch, enhanced availability
- HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
- HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
- HDD SAS, 10,000 rpm, 1800 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 1200 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 900 GB, 2.5-inch
- HDD SAS, 10,000 rpm, 600 GB, 2.5-inch
- Drive bays 1 x 5.25-inch external bays
- Slots 1 x PCI-Express 3.0 x16
- Interfaces 2 x USB 2.0 total
- 2x 2.0 x USB front
- 1x 3.0 x USB internal
- 2x 3.0 x USB rear
- 1 x Serial (RS-232, optional via slot bracket)
- 1 (IRMC) x VGA
- 2 x Ethernet (RJ-45)
- Graphics features Ultra-high-end 3D: NVIDIA® Quadro® P6000, 24 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
- Ultra-high-end 3D: NVIDIA® Quadro® M6000, 24 GB, 3,072 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort, stereo, SLI
- Ultra-high-end 3D: NVIDIA® Quadro® P5000, 16 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
- Ultra-high-end 3D: NVIDIA® Quadro® M5000, 8 GB, 2304 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort
- High-end 3D: AMD FirePro™ W7100, 8 GB, PCIe x16, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® P4000, 8 GB, PCIe x16, 4 x DisplayPort
- High-end 3D: NVIDIA® Quadro® M4000, 8 GB, 1344 cores, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® P2000, 5 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: NVIDIA® Quadro® M2000, 4 GB, 768 cores, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD Radeon Pro™ WX5100, 8 GB, 320 stream processors, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD FirePro™ W5100 , 4 GB, PCIe x16, 4 x DisplayPort
- Midrange 3D: AMD FirePro™ W4300, 4 GB, 512 stream processors, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
- Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4x miniDP
- Entry 3D: NVIDIA® Quadro® K1200, 4 GB, 384 cores, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
- Entry 3D: AMD FirePro™ W4100, 2 GB, 512 stream processors, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
- Entry 3D: AMD Radeon Pro™ WX3100, 4 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: NVIDIA® Quadro® P600, 2 GB, PCIe x16, 4x miniDP
- Entry 3D: NVIDIA® Quadro® K620, 2 GB, 384 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
- Entry 3D: AMD Radeon Pro™ WX2100, 2 GB, 320 stream processors, PCIe x16, 1x DisplayPort, 2x miniDP
- Entry 3D: AMD FirePro™ W2100, 2 GB, 320 stream processors, PCIe x16, 2x DisplayPort
- Entry 3D: NVIDIA® Quadro® P400 , 2 GB, PCIe x16, 3x miniDP
- Entry 3D: NVIDIA® Quadro® K420, 2 GB, 192 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
- Professional 2D: NVIDIA® NVS™ 510, 2 GB, 16 cores, PCIe 2.0 x16, 4x miniDP, 4x miniDP/DP Adapter
- Professional 2D: NVIDIA® NVS™ 315, 1 GB, 48 cores, PCIe 2.0 x16, 1x LFH59 (max. 2x DP or 2x DVI-I)
- Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
- Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
- LAN 2x Built-in 10/100/1,000 MBit/s Intel® I217LM and Intel® I210AT
- Weight approx. 13 kg
- approx. 28.7 lbs
- Dimensions (W x D x H) 431 x 683 x 44.45 mm
- 16.97 x 26.89 x 1.75 inch
- Special features 1 height unit only, Support of ultra high-end graphics or compute card, Made in Germany
- Warranty period 3 years (depending on country)
- Warranty type Onsite Service (depending on country)
