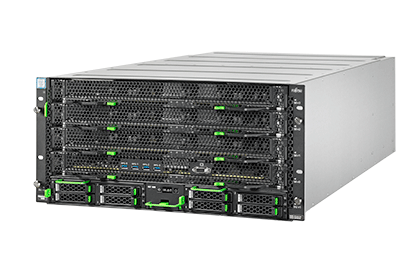

FUJITSU Server PRIMEQUEST 3800B

FUJITSU Server PRIMEQUEST 3800B             VER STYLE SHEET EM PDF

The FUJITSU Server PRIMEQUEST 3800B is an 8-socket rack server that offers superior performance, reliability and optimized economics for business-critical workloads. Featuring the latest Intel® Xeon® Processor Scalable Family with up to 28 cores per processor and fastest available DDR4 memory modules with 12TB total capacity, the PRIMEQUEST 3800B improves performance for in-memory databases such as SAP HANA®and real-time data analytics. Along with uncompromising performance, the PRIMEQUEST 3800B’s optimized economics in a compact 5U chassis and advanced RAS features that prevent errors in advance, make it the right choice for demanding corporate databases, in-memory solutions and business-critical applications.

Technical details

Chipset Intel® C621
Mainboard type up to 4 x Systemboards
Product Type Octo Socket Rack Server
Processor Intel® Xeon® Processor Scalable Family
Memory 32 GB - 12 TB, DIMM (DDR4)
Memory protection ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR
PCI-Express 3.0 x8 8 x Low profile
PCI-Express 3.0 x16 8 x Low profile (PCI hot-plug is available in 4 out of 8 slots)
Storage drive bays 8 x 2.5-inch hot-plug
8x 2.5” SAS HDD/SSD´s
Storage drives SSD SAS, 12 Gb/s, 400 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 800 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 800 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 1.6 TB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 1.6 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 3.2 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 2.3 DWPD (Drive Writes Per Day for 5 years)
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
SSD M.2 SATA, 6 Gb/s, 150 GB, non hot plug, enterprise, 1.5 DWPD (Drive Writes Per Day for 5 years)
I/O controller onboard Intel® i210 onboard
10/100/1000 Mbit/s Ethernet
Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
Power supply configuration Up to 4 hot-plug power supplies.
Base unit equipped with 2 power supplies, redundancy as option.
Active power (max. configuration) 4,167 W
Weight Up to 80 kg
Rack (W x D x H) 482 x 820 x 219 mm
Server Management Server Management
Standard ServerView Suite - Maintain
Remote Management (iRMC S5)
Update Management (BIOS, Firmware, Windows Drives and SV Agents)
Performance Measurement
Asset Management
Online Diagnostics, ServerView Suite - Integrate
Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM, Deployment tools and others, ServerView Suite - Deploy
SV Installation Manager, ServerView Suite - Control
Operations Manager incl. PDA and ASR & R
Agents and CIM Providers / Agentless Service
System Monitor
RAID Manager
Capacity Management
Power Management
Storage Support
Option ServerView embedded Lifecycle Management (eLCM)
Lifecycle management
Warranty period 3 years (depending on country)
Warranty type Onsite Service
Service Lifecycle 5 years after end of product life
Service Weblink www.fujitsu.com/support
