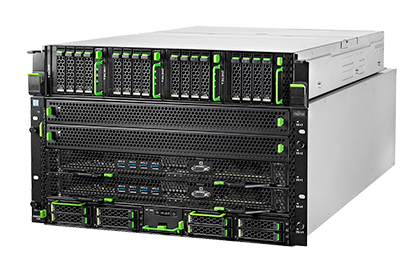

FUJITSU Server PRIMEQUEST 3400E
Os servidores PRIMEQUEST (PQ1800E / PQ1800E2) da Fujitsu são servidores x86 de alto desempenho de missão crítica que permitem que os clientes usufruam dos benefícios económicos e da flexibilidade das normas da indústria Linux e Windows, preservando, ao mesmo tempo, todos os atributos dos serviços de centros de dados de missão crítica.
- FUJITSU Server PRIMEQUEST 3400E VER STYLE SHEET EM PDF
The FUJITSU Server PRIMEQUEST 3400E is a 4-socket rack server that offers superior performance and optimized efficiency for the most demanding mission-critical environments. Featuring the latest Intel® Xeon® Platinum/Gold processors with up to 28 cores per processor and fastest available DDR4 memory modules with 6TB total capacity, the PRIMEQUEST 3400E is suitable for in-memory databases such as SAP HANA® and real-time data analytics. Along with uncompromising performance, the PRIMEQUEST 3400E’s optimized economics in a compact 7U form-factor and mission-critical level reliability including advanced RAS features, make it the right choice for critical UNIX workloads/UNIX migrations that require inherent robustness built in to the system as well as high-volume, high-value workloads such as online transaction processing (OLTP), batch processing, and database applications.
Technical details
Chipset Intel® C621
Mainboard type up to 2 x Systemboards
Product Type Quad Socket Rack Server
Memory 16 GB - 6 TB, DIMM (DDR4)
Memory protection ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR
PCI-Express 3.0 x8 12 x Low profile (3slots / IOU, Max. 4 IOUs / Chassis)
PCI-Express 3.0 x16 4 x Low profile (1slot / IOU, Max. 4 IOUs / Chassis)
Storage drive bays 2.5-inch hot-plug SAS
Max. 24 x 2.5-inch
Storage drives PCIe-SSD AIC, 2 TB, Mixed-use, HHHL, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD AIC, 4 TB, Mixed-use, HHHL, Flash drive, 3.1 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 400 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 800 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 800 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 1.6 TB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 1.6 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years)
SSD SAS, 12 Gb/s, 3.2 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 2.3 DWPD (Drive Writes Per Day for 5 years)
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
SSD M.2 SATA, 6 Gb/s, 150 GB, non hot plug, enterprise, 1.5 DWPD (Drive Writes Per Day for 5 years)
I/O controller onboard 2 x 10 Gbit/s Ethernet (RJ45)
PQ3000 Management Board (MMB)
Power supply configuration Up to 4 hot-plug power supplies.
Base unit equipped with 2 power supplies, redundancy as option.
Active power (max. configuration) 5,070 W
Weight up to 96 kg
Rack (W x D x H) 445 x 820 x 308 mm
Server Management Server Management
Standard ServerView Suite - Maintain
Remote Management (iRMC S5)
Update Management (BIOS, Firmware, Windows Drives and SV Agents)
Performance Measurement
Asset Management
Online Diagnostics, ServerView Suite (Integrate)
ServerView Integration packs for MS System Center, VMware vCenter, VMware vRealize, Nagios and HP SIM, Deployment tools and others, ServerView Suite - Deploy
SV Installation Manager, ServerView Suite - Control
Operations Manager
Agents and CIM Providers / Agentless Service
System Monitor
RAID Manager
Capacity Management
Storage Support
Option ServerView embedded Lifecycle Management (eLCM)
Lifecycle management
Warranty period 3 years (depending on country)
Warranty type Onsite Service
Service Lifecycle 5 years after end of product life
Service Weblink www.fujitsu.com/support
