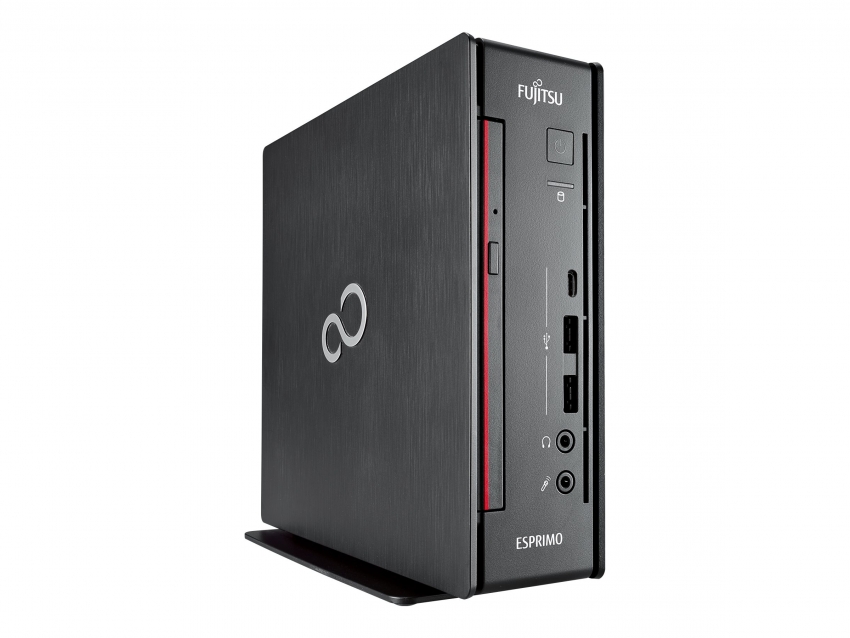

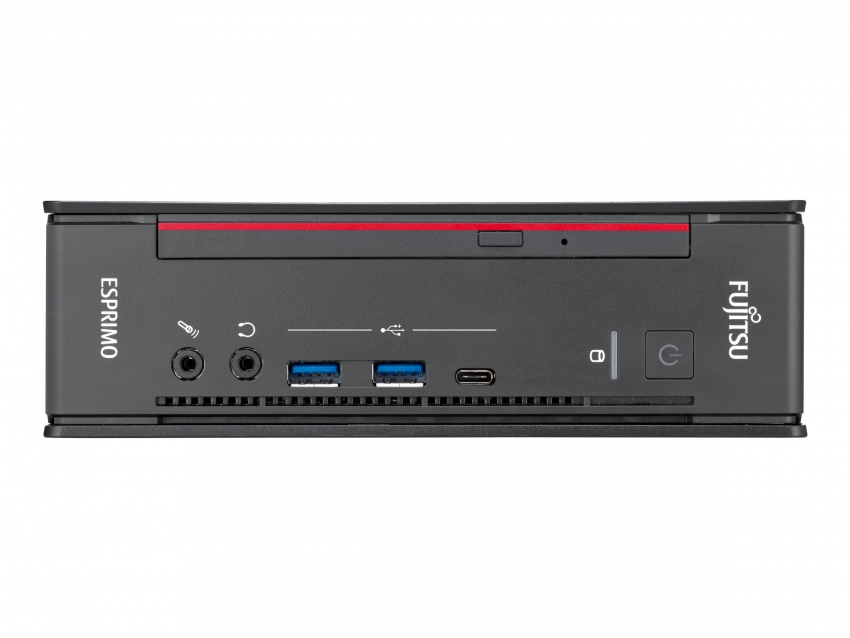

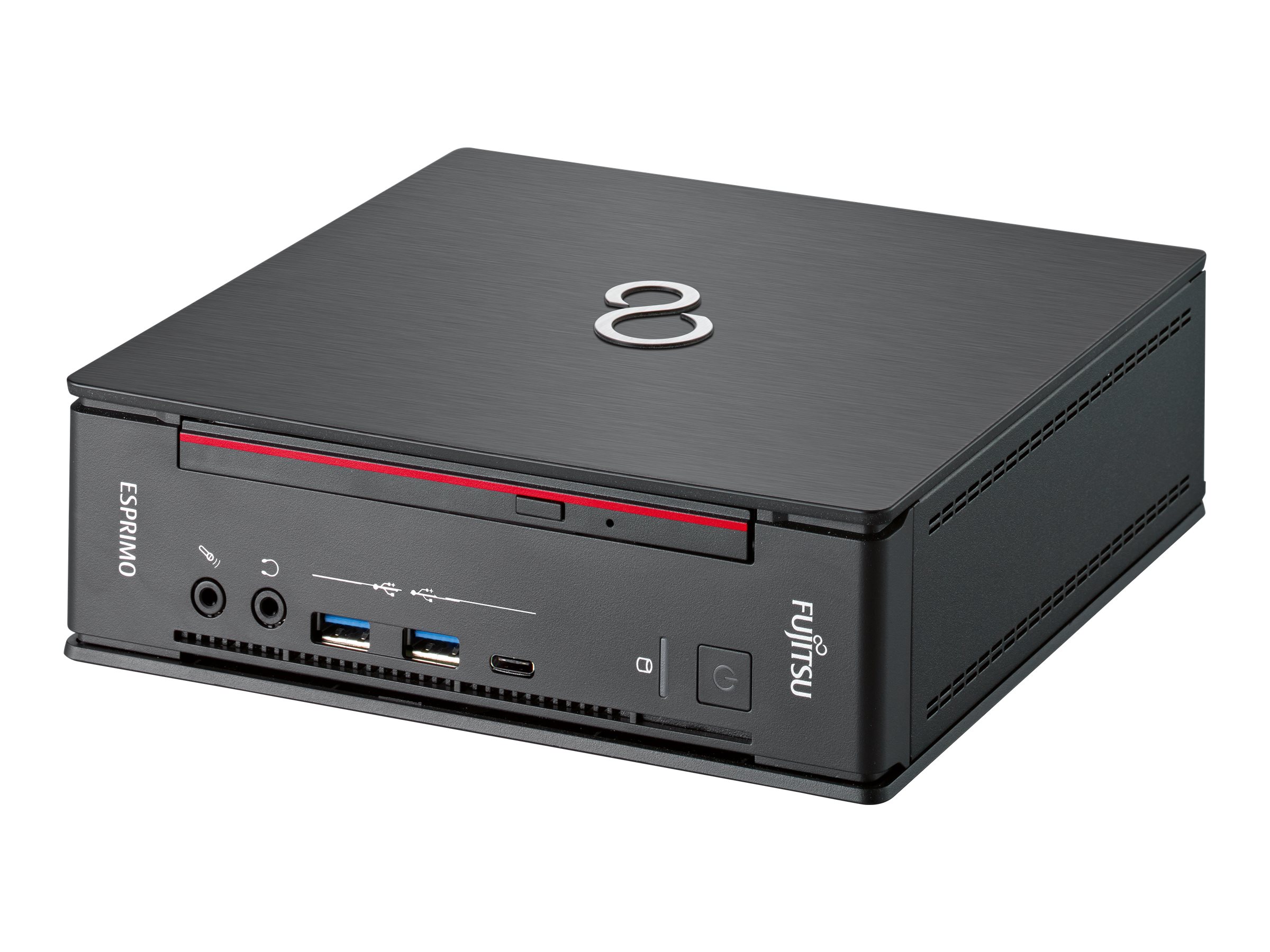

FUJITSU Desktop ESPRIMO Q957/MRE
Today’s business world needs smarter meeting spaces — conference rooms that guarantee that meetings can start on time and that can seamlessly and wirelessly connect all employees from any location. With a FUJITSU ESPRIMO Q957/MRE mini PC in the conference room and the Intel® Unite™ application running on devices, meetings always get off to a good start. Participants can easily view and interact with content in real time, and colleagues sitting side by side can even share screens wirelessly long after the meeting is over.
- Desktop ESPRIMO Q957/MRE VER STYLE SHEET EM PDF
- Operating system Windows 10 Pro
- Mainboard D3513 (proprietary )
- Chipset Intel® Q270
- Processor Intel® Core™ i7-7700T processor, 8 MB, 2.90 GHz, up to 3.8 GHz
- Intel® Core™ i7-6700T processor, 8 MB, 2.80 GHz, up to 3.6 GHz
- Intel® Core™ i5-7500T processor, 6 MB, 2.70 GHz, up to 3.3 GHz
- Intel® Core™ i5-6500T processor, 6 MB, 2.50 GHz, up to 3.1 GHz
- Supported capacity RAM (max.) 32 GB, 2 Memory slot(s) DIMM (DDR4), Dual channel support. For dual channel performance, a minimum of 2 memory modules have to be ordered. Capacity per channel has to be the same , DDR4 2,400 MHz will be clocked with 2,133 MHz in combination with 6th generation Intel®processor
- Serial ATA total 2
- thereof SATA III Serial ATA III (6 Gbit), NCQ, AHCI
- Drives (optional) DVD Super Multi ultra slim (tray), SATA
- BD Triple Writer SATA ultra slim (tray), SATA
- Hard disk drive PCIe-SSD, 128 GB M.2 NVMe module
- PCIe-SSD, 256 GB M.2 NVMe module
- PCIe-SSD, 512 GB M.2 NVMe module
- PCIe-SSD, 1024 GB M.2 NVMe module
- SSD SATA III, 256 GB, 2.5-inch
- SSD SATA III, 256 GB, 2.5-inch, SED
- SSD SATA III, 512 GB, 2.5-inch
- SSD SATA III, 512 GB, 2.5-inch, SED
- SSD SATA, 128 GB, M.2 module
- SSD SATA, 256 GB, M.2 module
- SSD SATA, 512 GB, M.2 module
- Drive bay 1 x 5.25-inch external bay
- Interfaces 1 x Audio: line-out
- 1 x Front audio: headphone
- 1 x Front audio: microphone
- 7 x USB 3.1 Gen1 (USB 3.0) total
- 2 x USB 2.0 total
- 2x USB 3.0 and 1x USB 3.1 Type-C (Gen1) x USB front
- 2x USB 2.0 and 4x USB 3.0 x USB rear
- 1 x Serial (RS-232) 9pin, 16 byte FIFO, 16550 compatible
- 1 x Ethernet (RJ-45)
- 1 x Kensington Lock support
- 1 (DVI-D) x DVI
- 2 x DisplayPort
- 0/1 optional (with PC on/off function on Pin6) x Mouse / Keyboard (PS/2)
- Graphics Intel® HD Graphics 530, Intel® HD Graphics 630, up to 1,782 MB
- Audio type Realtek ALC671
- Communication 10/100/1,000 MBit/s Intel® I219LM
- 1 (optional with Bluetooth together) x Integrated WLAN
- Weight 1.6 kg
- 3.53 lbs
- Dimensions (W x D x H) 186 x 191 x 59 mm
- 7.32 x 7.49 x 2.30 inch
- Power efficiency note power supply efficiency (at 230V; 2 Watt/ 10% / 20% / 50% / 100% load) : x› 85%/ 90% / 90% / 92% / 92%
- Special features Made in Germany, Low Power Active Mode, EraseDisk functionality, Extremely space-saving design, Integrated VESA mount, Easy expandability, PVC free, Zero Noise PC
- Warranty period 3 years (depending on country)
